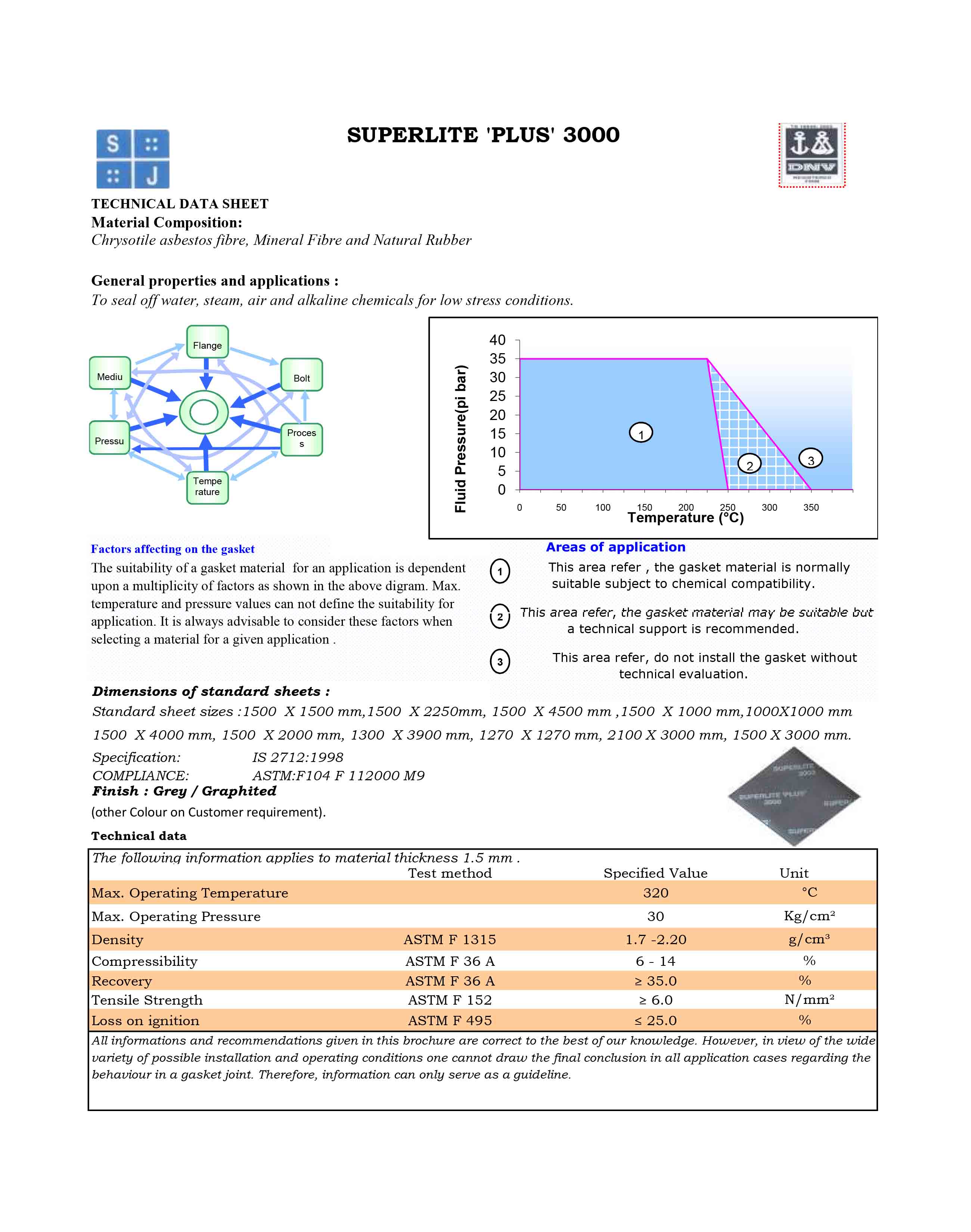

Superlite Plus 3000
TECHNICAL DATA SHEET Material Composition:
Factors affecting on the gasket
SUPERLITE 'PLUS' 3000
Chrysotile asbestos fibre, Mineral Fibre and Natural Rubber
General properties and applications : To seal off water, steam, air and alkaline chemicals for low stress conditions.
Areas of application
The suitability of a gasket material for an application is dependent upon a multiplicity of factors as shown in the above digram. Max. temperature and pressure values can not define the suitability for application. It is always advisable to consider these factors when
This area refer , the gasket material is normally suitable subject to chemical compatibility.
This area refer, the gasket material may be suitable but
Dimensions of standard sheets :
1500 X 4000 mm, 1500 X 2000 mm, 1300 X 3900 mm, 1270 X 1270 mm, 2100 X 3000 mm, 1500 X 3000 mm.
Specification: IS 2712:1998 COMPLIANCE: ASTM:F104 F 112000 M9 Finish : Grey / Graphited (other Colour on Customer requirement).
Technical data
The following information applies to material thickness 1.5 mm . Test method Specified Value Unit Max. Operating Temperature 320
Max. Operating Pressure 30
Density ASTM F 1315 1.7 -2.20 Compressibility ASTM F 36 A 6 - 14 Recovery ASTM F 36 A ≥ 35.0 Tensile Strength ASTM F 152 ≥ 6.0 Loss on ignition ASTM F 495 ≤ 25.0
°C
application. It is always advisable to consider these factors when selecting a material for a given application .
This area refer, the gasket material may be suitable but a technical support is recommended.
This area refer, do not install the gasket without technical evaluation.
Standard sheet sizes :1500 X 1500 mm,1500 X 2250mm, 1500 X 4500 mm ,1500 X 1000 mm,1000X1000 mm
All informations and recommendations given in this brochure are correct to the best of our knowledge. However, in view of the wide variety of possible installation and operating conditions one cannot draw the final conclusion in all application cases regarding the behaviour in a gasket joint. Therefore, information can only serve as a guideline.
